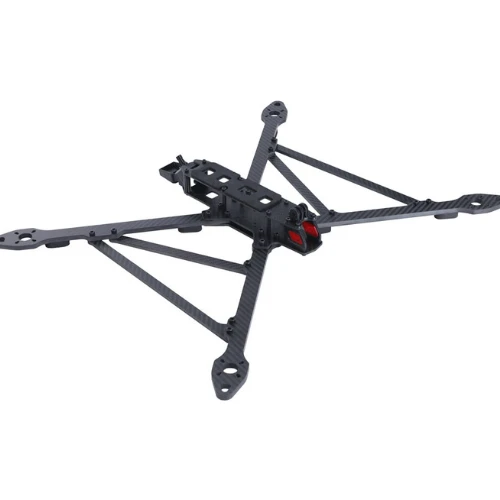

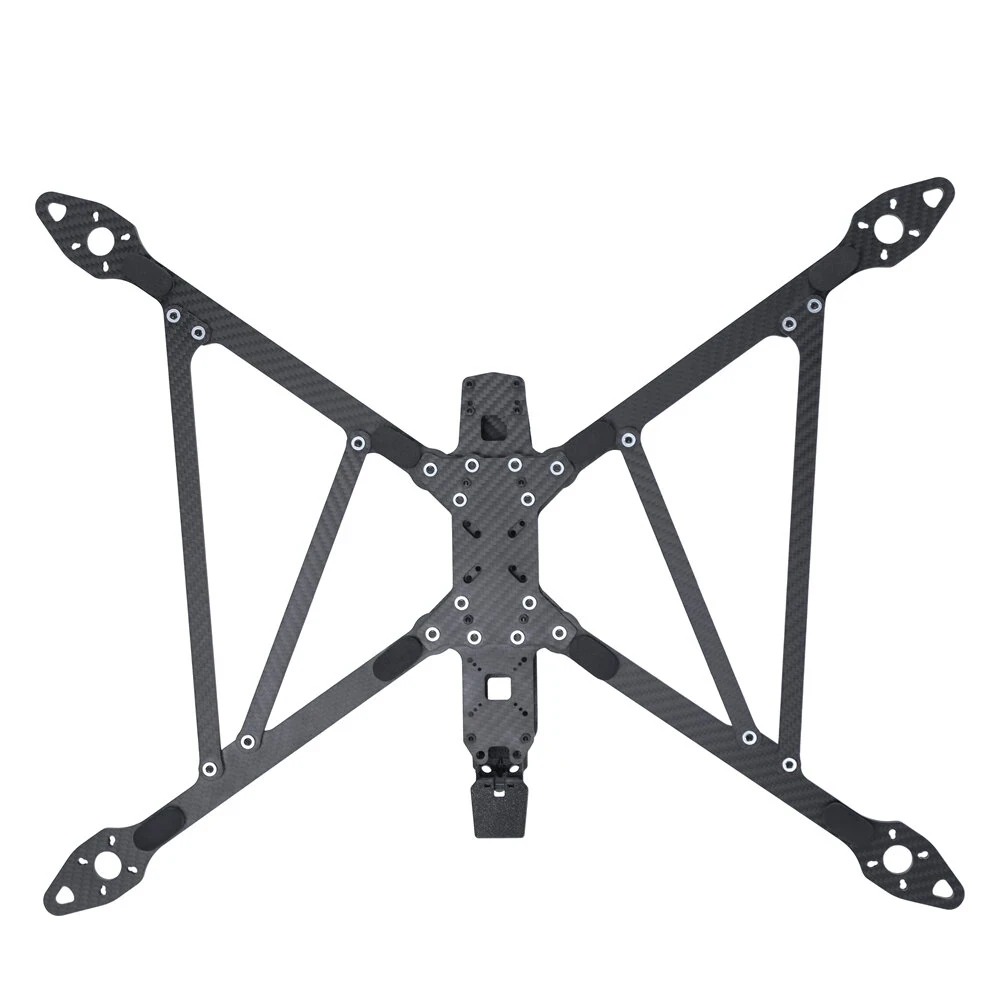

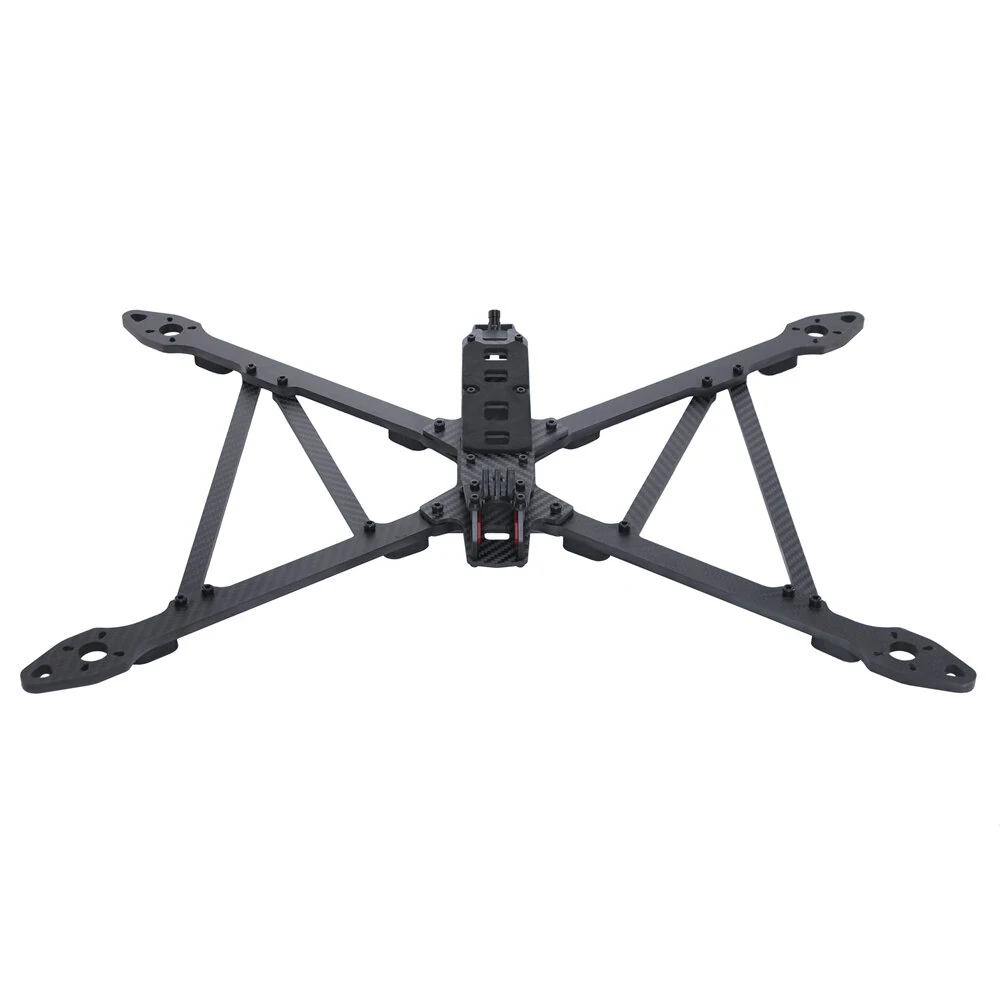

Apexevo 13 Inch 15 Inch Large Size Long Endurance X-class Frame Kit for RC FPV R
(5.00) 1 Reviews 0 Wish listed
AED305.15
Quantity :
Total price :
  (Tax : )
Out of stock

Product Reviews

Product Overview

Note:

1. The package only contains the frame, not the whole machine, nor is it ready to fly, and is not equipped with any electronic accessories.

2. You need to prepare all the electronic accessories, screwdrivers and other accessories and assembly tools yourself. Only the frame and the screws and aluminum columns for assembling the frame are shipped. Screws for other electronic accessories (such as flight control/flying tower/electronic speed controller/motor/camera, etc.) are not provided.

3. Carbon fiber materials and metal accessories such as screws will conduct electricity, so please insulate them during installation and use.


Specifications:

Item Name

Apexevo 13-inch

Apexevo 15-inch

Wheelbase

564mm

662mm

Appearance size

407mm*512mm*50mm

493mm*593mm*50mm

Weight

About 567g

About 620g

Structure

X Structure

Thickness

Bottom plate 3.0mm, upper plate 2.0mm, splint 3.0mm, arm 8.0mm, reinforcing rod 4.0mm

Camera side panel

3D printed TPU

Aluminum column specifications

M3*28mm aluminum column

Applicable propeller size

13 Inch

15 Inch

Flight control hole spacing

20*20mm(M3),30.5*30.5mm(M3)

Tail image transmission installation hole spacing

20*20mm(M2),25.5*25.5mm(M2),30.5*30.5mm(M3)

Camera installation width

20mm/19mm

Internal height

About 28mm

Motor installation hole spacing

25*25mm(M3),30mm*30mm(M4)

Applicable image transmission

DJI 03 Air Unit/VISTA Sky Unit/DJI Sky Unit/Analog Image Transmission, etc.

Sheet material

3K (T700 level)

Applicable GPS

BZ251

Printed material and color

3D printed tpu material, black



Feature:

1. Robust Build: Made with high-quality 3K carbon fiber, ensuring lightweight and optimal strength for enhanced performance.

2. Versatile Configuration: Features two head assembly methods, offering flexible installation options to suit different operational needs.

3. Precise Fit: Tailored for DJI O3 Air Unit/VISTA and other compatible modules, providing an easy and secure attachment for various drone applications.

4. Optimized Mounting: Equipped with multiple mounting holes, it supports 20x20mm, 25.5x25.5mm, and 30.5x30.5mm formats for versatile accessory integration.

5. Smart Design: Innovative frame structure with 3D printed TPU parts enhances stability, while maintaining a sleek and aerodynamic profile.



Package included:

1x Apexevo 13/15-inch X-class Frame Kit
