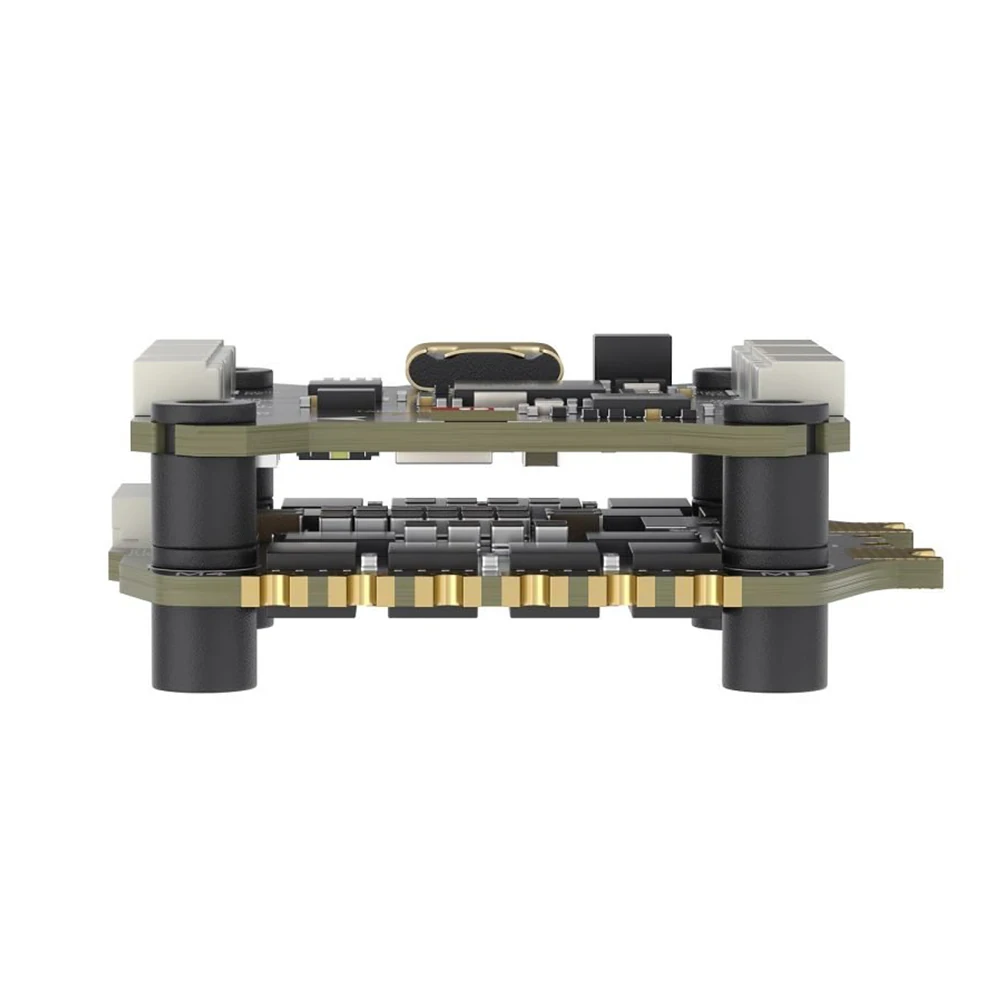

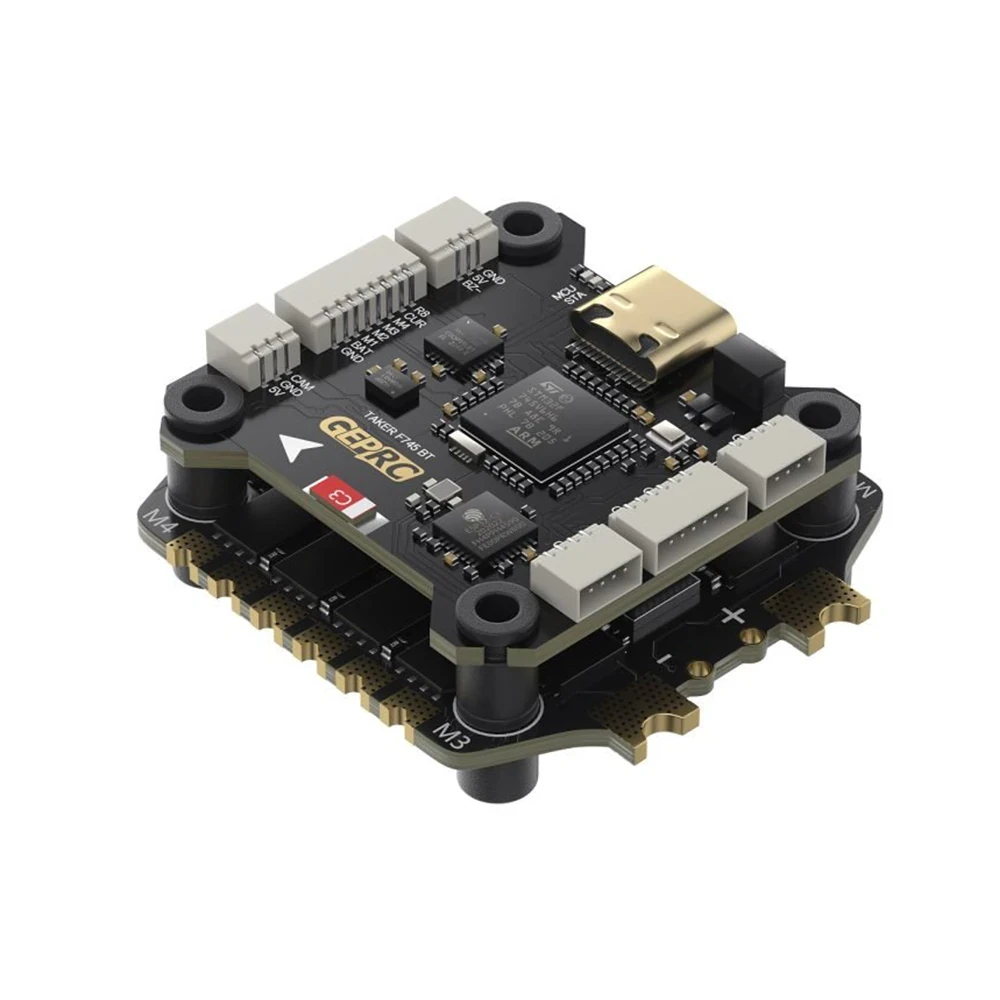

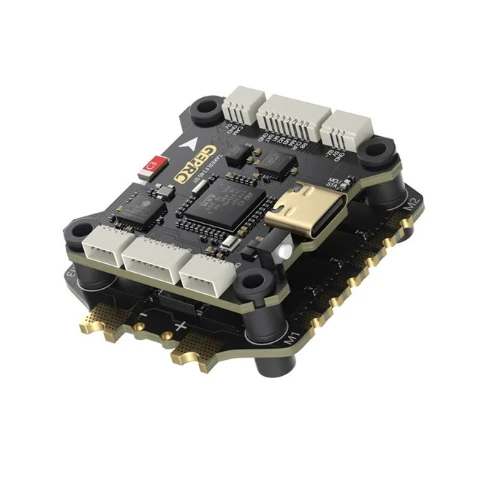

30.5×30.5mm GEPRC TAKER F745 BT Flight Controller with H60

30.5×30.5mm GEPRC TAKER F745 BT Flight Controller with H60_BLS 60A 4IN1 ESC 5V 1

(5.00) 4 Reviews 0 Wish listed

AED293.94

Quantity :

Total price :

(Tax : )

Product Reviews

Thawab Rabeea

The durability is definitely 5 stars for me. And with the Bluetooth betaflight availability along with a 9v for digital. However, I Did have to solder my DJI system in because the plug failed but has not given me a problem after that for months now.

Mawiya Issa

I took a chance on this relatively inexpensive stack with hardly any reviews. It updated firmware and flew fine on my 5”. Had trouble with ESCs then tried the other connection at FC which solved it.

Safi Sajjad

I give it a 3 because it won't let me update to betaflight version 4.4.3 or 4.5.0 and gives me the following error "mixer mode problem detected" but if you leave the default version everything works fine. Esc gone in second flight.

Rabab Adilah Adilah

This stack works pretty well and is pretty cheap, haven't had any issues so far and it's pretty easy to conformal coat

Product Overview

Introduction：
The GEPRC TAKER F745 BT 8Bit 60A stack is the latest stack system developed by the GEPRC team. It features a high-performance STM32F745VGH6 chip with a Cortex-M7 core running at up to 216MHz, handling both racing and freestyle flights with ease. Its dual gyroscope setup, using MPU6000 and ICM42688-P, ensures precise control. With integrated Bluetooth for wireless parameter adjustments and a built-in 512MB black box, it’s well-equipped. It also offers eight motor output ports and is compatible with X8 models.
Compatible with Betaflight, INAV, and Ardupilot, it ensures flexibility. The dual independent 5V@3A + 12V@2.5A BEC ensures stable charging and motor voltage options. Features include seven UART ports, an integrated barometer, and plug-and-play functionality. With the TAKER H60_BLS 4-in-1 ESC, it delivers an exceptionally smooth flight experience.

Features:
- Adopts the high-performance STM32F745 as the main controller
- Equipped with MPU6000 and 42688-P dual gyroscopes
- 512MB high-capacity black box storage
- Bluetooth parameter tuning
- Upgraded Type-C USB interface
- Plug-and-play, no soldering required.
- Integrated barometer
- Features 7 UART ports
- Independent BEC with 12V@2.5A and 5V@3A outputs
- Equipped with the TAKER H60_BLS 60A 4IN1 ESC for a smooth flight experience.

Specifications:

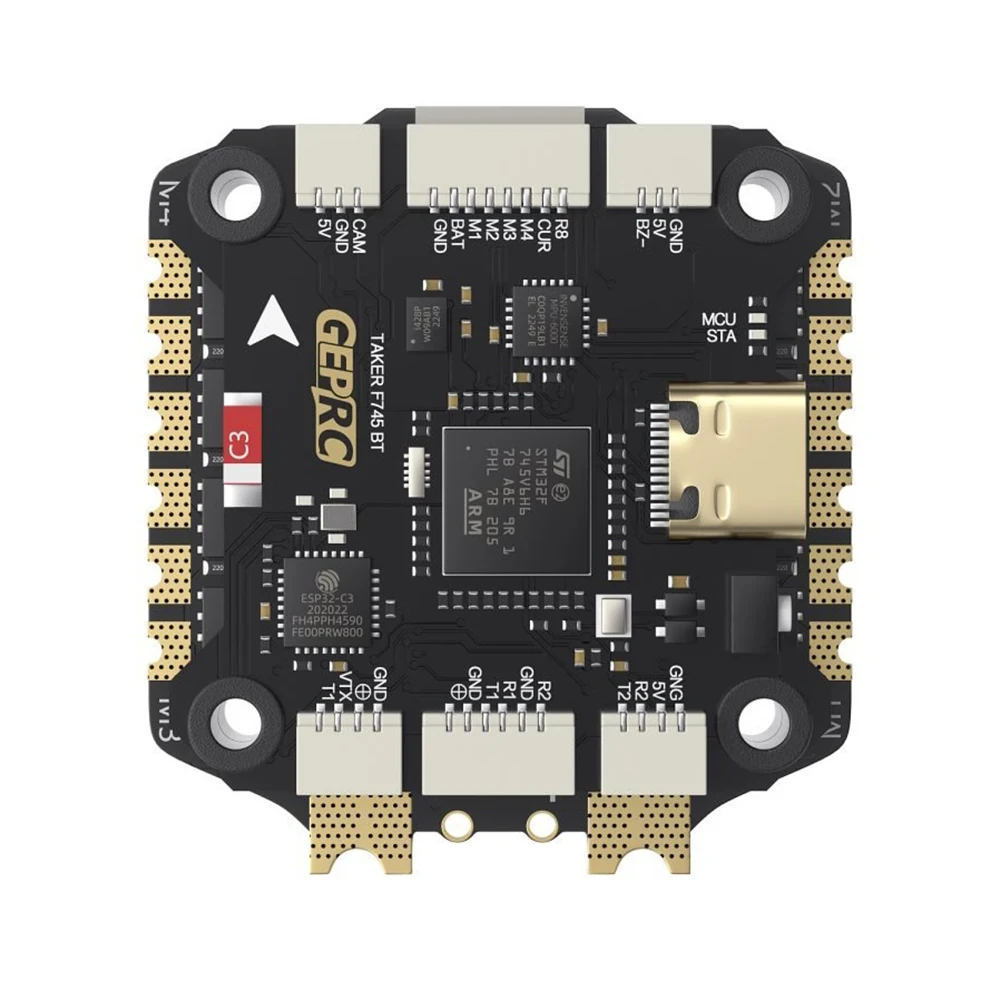

TAKER F745 BT Flight Controller

FC Model: TAKER F745 BT Flight Controller
MCU: STM32F745
IMU: MPU6000 + ICM42688-P(dual gyro)
Air Unit Connection: direct plug for DJI Air Unit
Black Box：512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC Output: 5V@3A,12V@2.5A dual BEC
Target: GEPRCF745_BT_HD
Dimension: 38.5×38.5mm, mounting hole size 30.5×30.5mm
Input Voltage: 3-6S LiPo
UART Ports: 7 groups (UART3 fixed for Bluetooth)
Power Filtering: Integrated LC filter
Weight: 8.4g

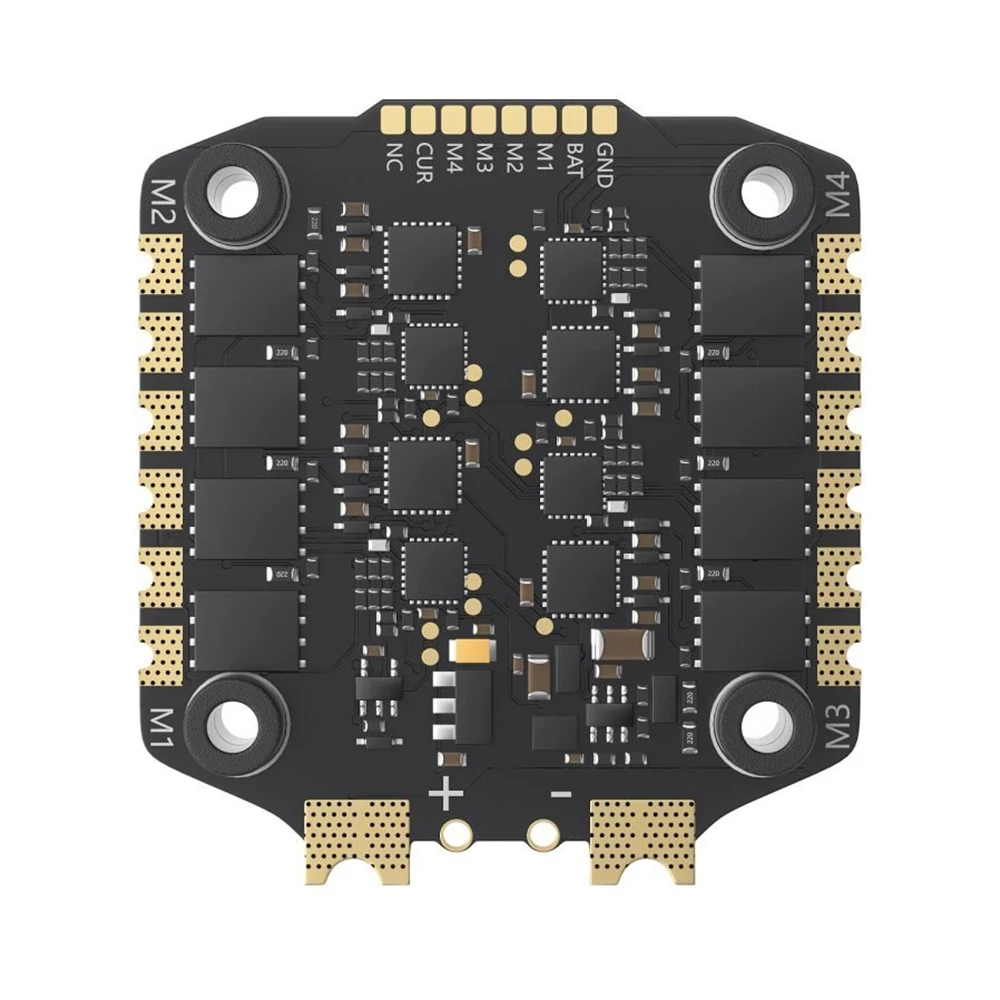

TAKER H60_BLS 60A 4IN1 ESC

ESC Model: TAKER H60_BLS 60A 4IN1 ESC
Input Voltage: 3-6S Lipo
Continuous Current: 60A
Peak Current: 65A（5 seconds）
Supported Protocol: Dshot 150/300/600
Dimension：42×45.7mm, mounting hole size 30.5×30.5mm
Weight: 14.9g
Target: B_X_30

Package Included:
1 x FC board
1 x ESC board
1 x Capacitor
1 × DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x Buzzer connection cable
1 × XT60 power cable
4 × M3*30 screws
4 × M3*25 screws
8 x Nylon nuts
12 × Silicone anti-shake pads
