HGLRC Wind5 Lite V2 195mm Wheelbase 5 Inch Frame Kit for RC FPV Racing Drone - B
(0) 0 Reviews 0 Wish listed
AED166.90
Quantity :
Total price :
  (Tax : )

Product Reviews

No review given yet!

Product Overview

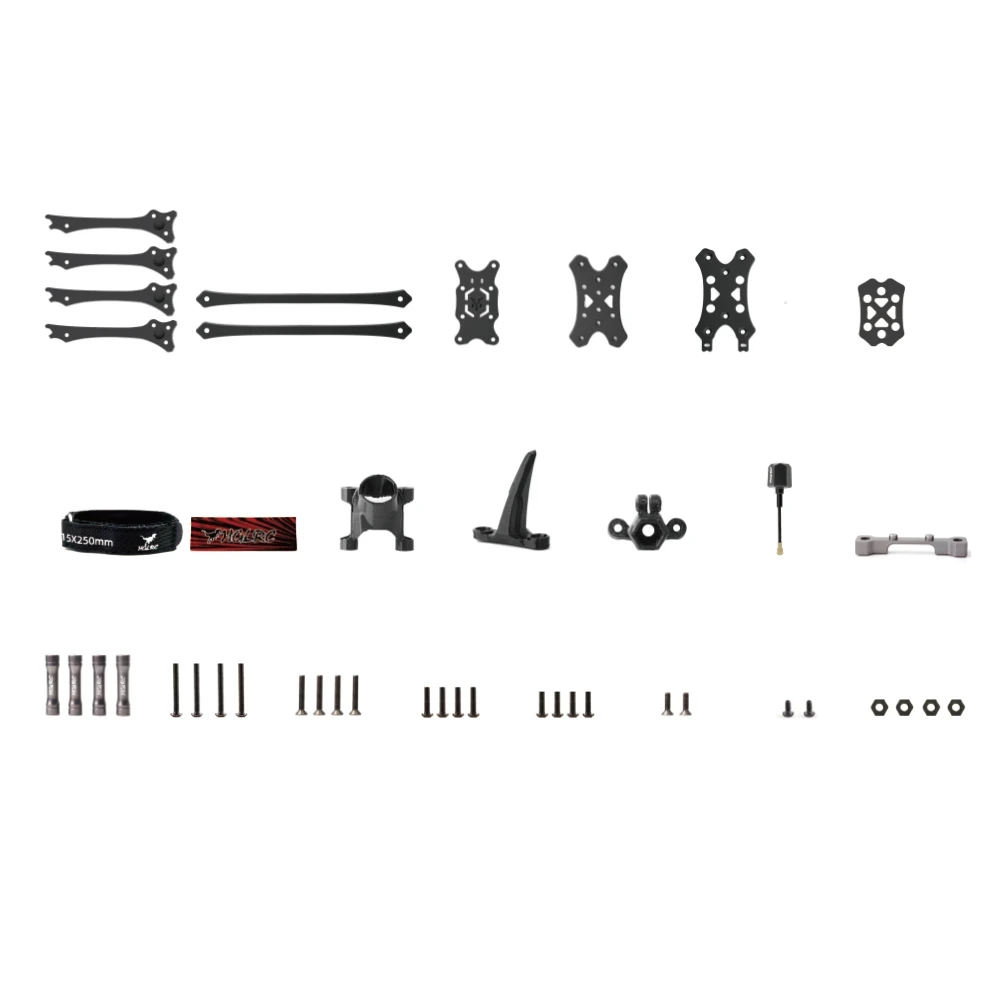

Note: -- It is Empty Frame Kit, not include FC,ESC, Motor, Propeller, VTX, Camera, Battery, etc. -- It Comes unassembled. Need build by buyers.
-- The default configuration includes FOXEER predato 5NANO 45-degree camera mount/analog RHCP mini hammer antenna (the frame antenna mount is only compatible with the new HGLRC mini hammer antenna, if you need a digital antenna, you can purchase it yourself).  Description:

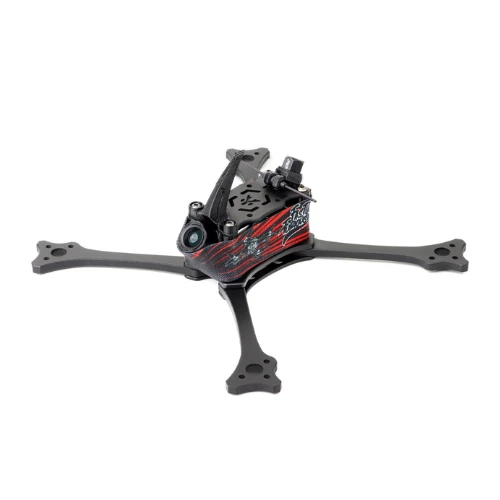

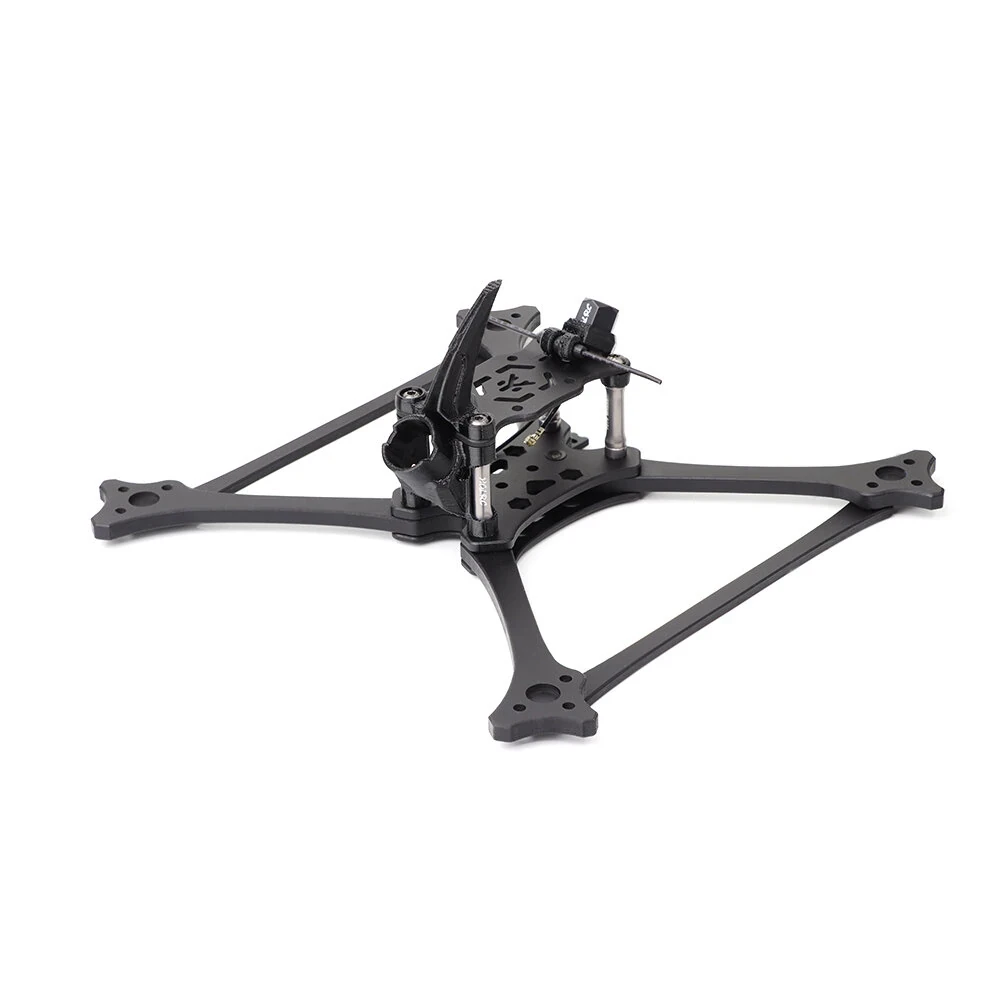

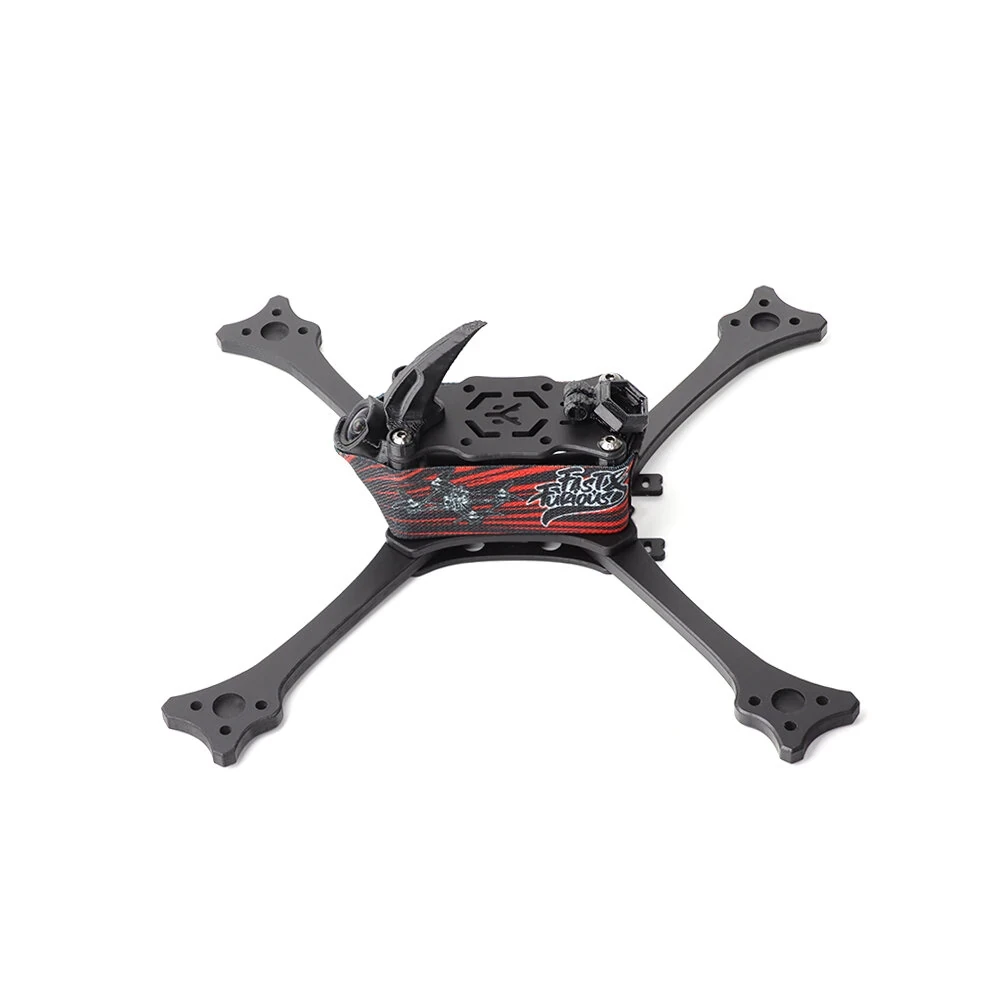

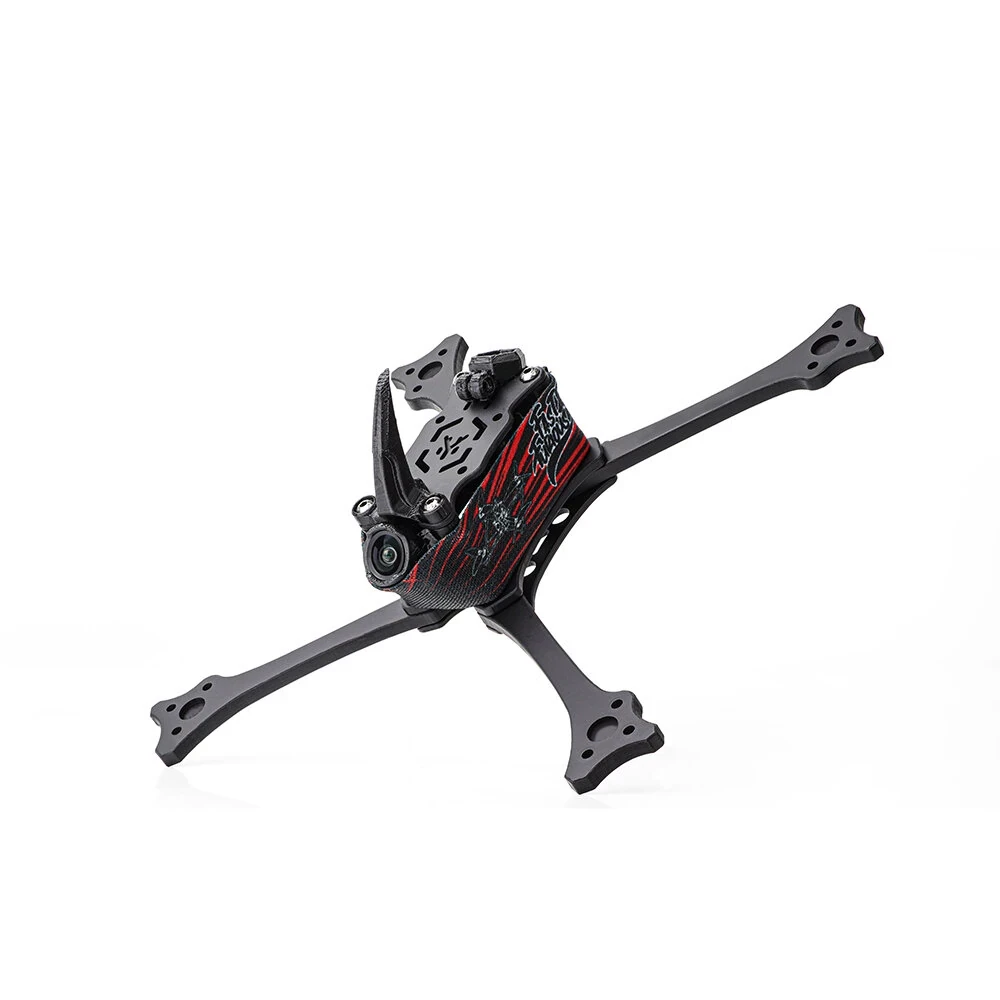

Wind5 Lite V2 is a lightweight racing frame designed for racing drone competitions. It is designed as a positive X structure with a wheelbase shortened to 195mm, which provides a better flying feel.
The frame uses Toray-T700 carbon fiber + 7075 aviation-grade aluminum columns, and is equipped with an arm protection rod design. The frame structure is more solid/explosion-resistant, and supports quick-disassembly of the arm for easy daily maintenance.

Features:
-- The frame is made of high-strength Toray-T700 carbon fiber material;
-- Customized high-strength 7075 aviation-grade limit aluminum parts to prevent empty space;
-- Customized high-strength 7075 aviation-grade aluminum columns to better protect cameras/stack and other equipment;
-- The arm quick-release design only requires one screw to quickly remove the arm for easy maintenance;
-- The top plate reserves 20x20*M3 holes for easy installation of HDZero digital VTX;
-- The default arm protection bar is standard to reduce the loss of the drone;
-- The default standard is a new design simulated RHCP mini hammer antenna;
-- The default standard is a 15*250mm non-slip battery strap, which is in place in one step.


Specification:
Brand: HGLRC Model: Wind5 Lite V2 Item Name: 5 Inch Frame Kit
Material: Toray-T700 spray paint
Frame Wheelbase: 195mm
Installation Space: 26mm
Flight Controller Mounting Hole: 20X20*M3
VTX Mounting Hole: 20X20*M3
Motor Mounting Hole: 16X16*M3
Frame Size (L*W*H): 172.5mm×169mmx70mm
Default Standard: FOXEER predato 5NANO 45-degree camera mount
Frame Thickness: top plate 2mm / middle plate 3mm / bottom plate 2mm / arm 5mm / protective rod 3mm
Single Frame Weight: 69.5g (including printed parts/aluminum column/screws)
